DUO

Evolution

Pull-out cabinet table with bridge leg

Finishing Runners: Inox Bronzino
Finishing Leg: RAL 7012 Grey
Load Capacity: 100 kg evenly distributed
Sliding: Aluminium / Aluminium

Solidity that becomes design.

The Duo collection embodies reliability and sturdiness through mechanisms designed to support larger surfaces and complex configurations. A double structure that ensures optimal stability without compromising on elegance.

Ideal for projects requiring maximum load-bearing capacity and safety, these Trasformabili combine technical precision with aesthetic care, enhancing any space with functional and striking solutions.

Evolution

An advanced system for transforming a cabinet into a true convivial area.

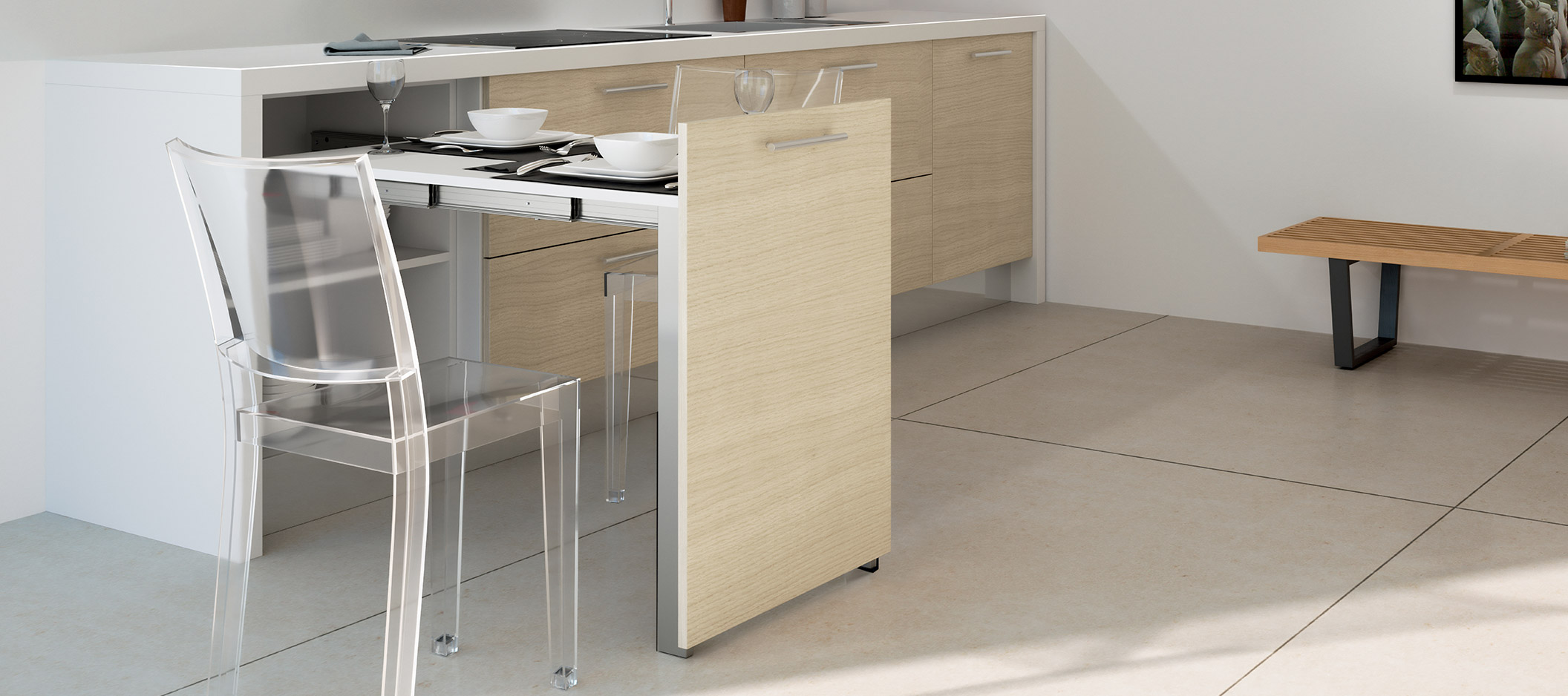

Evolution allows a medium- or large-sized table to be pulled out directly from a cabinet, integrating perfectly into the furniture.

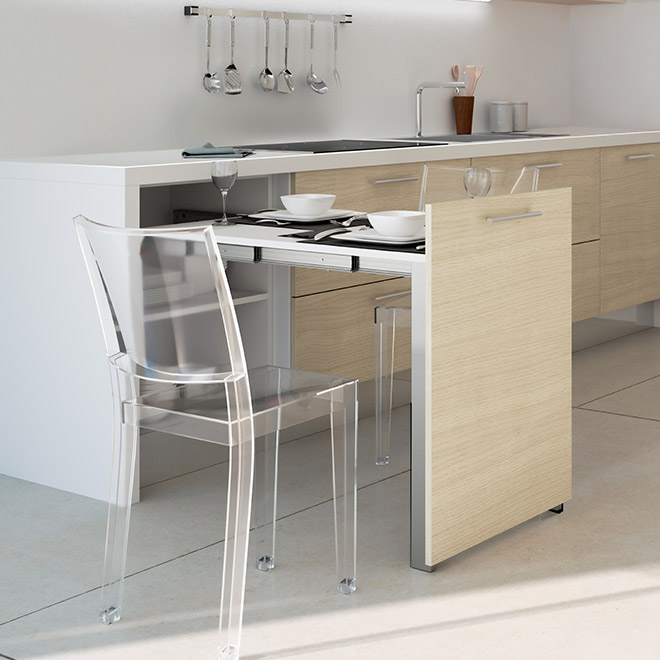

In the standard version, it uses the cabinet door as the opening element, while the Naked version allows frontless installations.

The mechanism comes complete with a painted steel bridge leg with adjustable wheels, ensuring stability and ease of use.

All technical components integrate with the wooden parts, maintaining aesthetic continuity.

A solution designed to combine functionality, solidity and design.

Need more info about the product?

Technical features

Finishing:
- Runners: Inox Bronzino
- Leg: RAL 7012 Grey
- Naked Version (N): Leg: RAL 9005 Matt black
Load Capacity: 100 kg evenly distributed
Sliding: Aluminium / Aluminium
Kit caps: 2.9247241.XX
Hinges:
- Evolution 600: 2.9250961.XX
- Evolution 900: 2.9250971.ΧΧ
Design: Arch. Giulio Manzoni, ATIM R&D
Packaging (2):
- Evolution 411/78.1610.25 118×18×8 cm 6 kg 0,017 m³ + 57×77×8 cm 8 kg 0,035 m³
- 411/78.1611.25 118×18×8 cm 6 kg 0.017 m³ + 87×88×8 cm 11 kg 0,055 m³
- Evolution Naked 411/78.1610.25N 118×18×8 cm 6 kg 0,017 m³ + 57×77×8 cm 8 kg 0,035 m³
- 411/78.1611.25N 118×18×8 cm 6 kg 0,017 m³ + 87×88×8 cm 11 kg 0,055 m³
NOTE: The item does not include the supply of wooden parts. The Naked Version (N) does not include crosspieces for fixing the door.

Versions

411/78.1610.25

M - Width: 600 mm
P - Depth: min 520 mm
H - Height: min 120 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 1040 mm
Z - Top width: min 555 mm
S - Top thickness: min 16 mm
T - Mechanism height: 730/755 mm
Silent: 78.1610.25

411/78.1611.25

M - Width: 900 mm
P - Depth: min 520 mm
H - Height: min 120 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 1040 mm
Z - Top width: min 855 mm
S - Top thickness: min 16 mm
T - Mechanism height: 730/755 mm
Silent: 78.1611.25
