Heavy-duty fully synchronized drawer runner

  • 170 Lbs Static load capacity
  • 154 Lbs Dynamic load capacity
  • Meets and exceeds ANSI A156.9-2020 Grade 1
  • Available in 15” to 30” length
A new generation of heavy duty drawer slides

Featuring an ingenious fully integrated synchronized system by way of a rack and pinion mechanism. Suitable for every drawer in the house and any commercial application without the need of any stabilizing rod, thanks to its patented smooth running action.

F70 SMOVE - USA Full extension-2

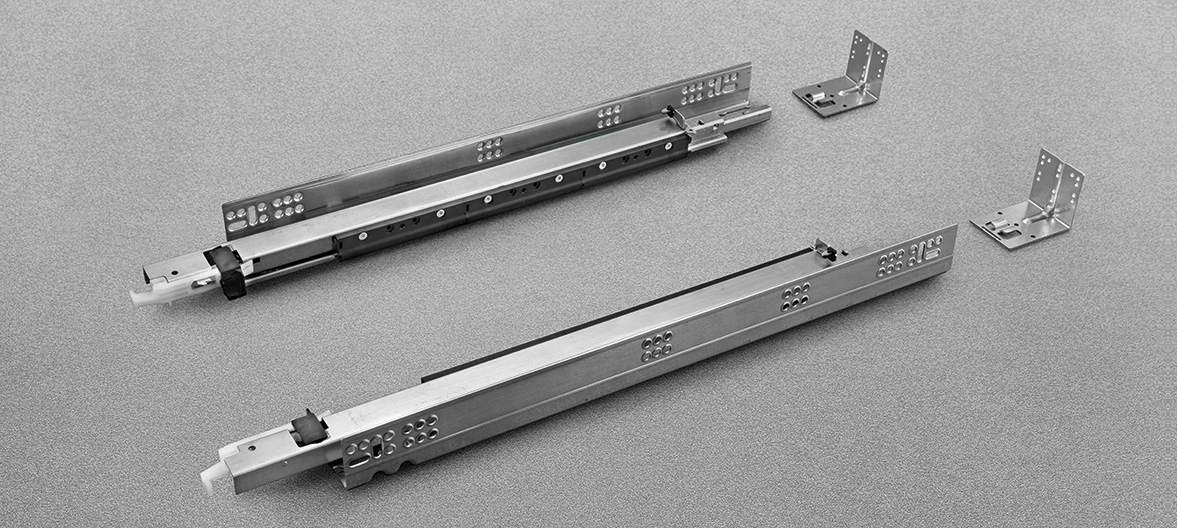

Smove: soft close mechanism fully integrated into the drawer runner.

The fluid-based soft close device guarantees a smooth action on any drawer. From pots and pans drawers to powder rooms, from garage cabinets to silverware drawers, F70 represents an ideal and versatile solution to all needs.

  • 170 Lbs Static load capacity
  • Full extension with a synchronized mechanism
  • Available in 15” to 30” length
  • Enhanced smooth soft closing action
  • Elongated holes for depth and height adjustment
  • Adjustable clips allow for easy drawer insertion and removal; special clip for narrow drawers
  • Tool free height adjustments + 2.5 mm
  • Tool free depth adjustments +/- 3 mm
  • Tool free side adjustments +/- 1.5 mm
  • Optional tool free tilt adjustment +3 mm
  • 12 mm (1/2”) to 16 mm (5/8”) drawer thickness
  • Compatible with Lineabox drawers
  • Finish: bright zinc-plated
  • 100% Made in Italy
G7U6S381XXB

FACE FRAME ASSEMBLY WITH METAL SOCKET

Drawer length: 381 mm (15")

Runner length: 390 mm

Minimum inside cabinet depth (metal socket): 402 mm

Minimum inside cabinet depth: 399 mm

G7U6S457XXB

FACE FRAME ASSEMBLY WITH METAL SOCKET

Drawer length: 457 mm (18")

Runner length: 466 mm

Minimum inside cabinet depth (metal socket): 478 mm

Minimum inside cabinet depth: 475 mm

G7U6S533XXB

FACE FRAME ASSEMBLY WITH METAL SOCKET

Drawer length: 533 mm (21")

Runner length: 542 mm

Minimum inside cabinet depth (metal socket): 555 mm

Minimum inside cabinet depth: 552 mm

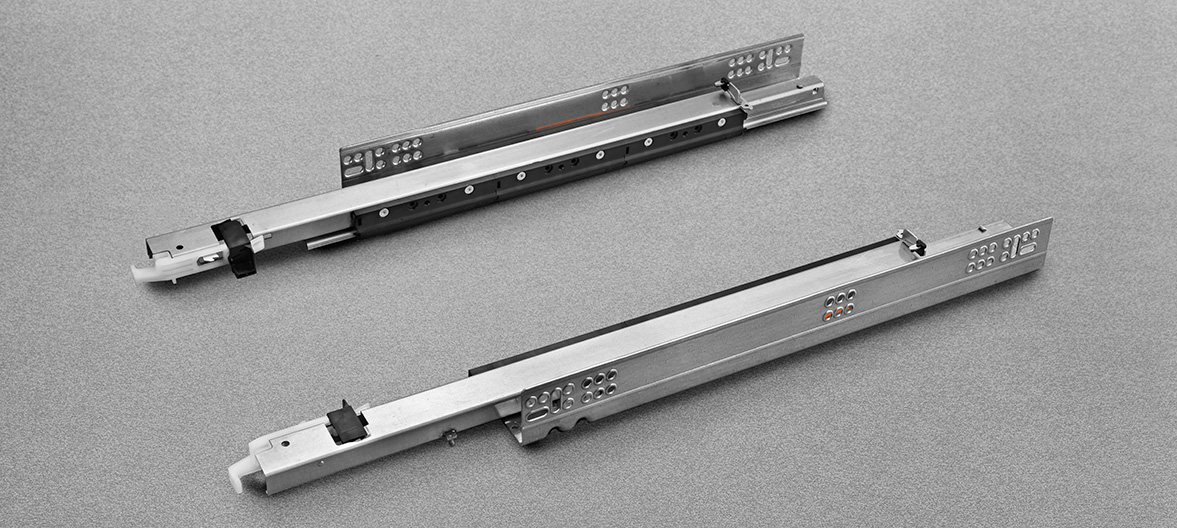

G7U6S457CXB

EURO SHORT VERSION

Drawer length: 457 mm (18")

Runner length: 465 mm

Minimum inside cabinet depth: 474 mm

G7U6S533CXB

EURO SHORT VERSION

Drawer length: 533 mm (21")

Runner length: 541 mm

Minimum inside cabinet depth: 551 mm

G7U6S610CXB

EURO SHORT VERSION

Drawer length: 610 mm (24")

Runner length: 618 mm

Minimum inside cabinet depth: 627 mm

G7U6S686CXB

EURO SHORT VERSION

Drawer length: 686 mm (27")

Runner length: 694 mm

Minimum inside cabinet depth: 706 mm

G7U6S762CXB

EURO SHORT VERSION

Drawer length: 762 mm (30")

Runner length: 770 mm

Minimum inside cabinet depth: 783 mm

AFCGXX3B

F70 Locking devices - Standard mount - side and depth adjustments

- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm (3/32”)

AFCGX43B

F70 Locking devices - Vertical mount - side and depth adjustments

- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Height of the sub front must be 13 mm (1/2”)
- Pre-drilling recommended ø 2.5 mm (3/32”)

AFCEX43B

F70 Locking devices - Narrow drawer clip

- For use with narrow drawers
- For all F70 runner versions
- Height of the sub front must be 13 mm (1/2”)

AGSK7C5B

Standard metal socket

- For F70 full extension runners
- Lateral self-alignment feature
- One piece stamped metal, zinc-coated
- Non-handed
- Use a minimum of 4 screws per socket

AGSK7R5B

Narrow metal socket

- For F70 full extension runners
- Lateral self-alignment feature
- One piece stamped metal, zinc-coated
- Non-handed
- Use a minimum of 4 screws per socket

SGD704UGXA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips. The correct and level mounting assures a smooth assembly and operation of the drawer slide.

AGLRXX3F

Optional tilt adjustment lever

Provides +3mm of adjustment to help align drawers.
Works without drawer removal.
Conveniently packaged.

ASPACERFUT

Side spacer

For spacing out F70 runners for clearance on interior roll-outs

V234X164

Wood screw

# 6 x 16 mm (5/8”)

V136X114

Euro screw

# 6 x 11 mm (7/16")

V136X154

Euro screw

# 6 x 14,5 mm (9/16")

Pozi screwdriver D2A7XCXCP

Pozi screwdriver
