F70 SMOVE - CANADA

Full-extension

Heavy-duty fully synchronized drawer runner

78 kg Static load capacity
70 kg Dynamic load capacity
Meets and exceeds ANSI A156.9-2020 Grade 1
Available in the full range of lengths from 350 mm to 750 mm

A new generation of heavy duty drawer slides

Featuring an ingenious fully integrated synchronized system by way of a rack and pinion mechanism. Suitable for every drawer in the house and any commercial application without the need of any stabilizing rod, thanks to its patented smooth running action.

Need more info about the product?

Smove: soft close mechanism fully integrated into the drawer runner.

The fluid-based soft close device guarantees a smooth action on any drawer. From pots and pans drawers to powder rooms, from garage cabinets to silverware drawers, F70 represents an ideal and versatile solution to all needs.

Find out more

78 kg Static load capacity
70 kg Dynamic load capacity
Full extension with a synchronized mechanism
Available in the full range of lengths from 350 mm to 750 mm
Enhanced smooth soft closing action
Elongated holes for depth and height adjustment
Adjustable clips allow for easy drawer insertion and removal
Tool free height adjustments + 2.5 mm
Tool free depth adjustments +/- 3 mm
Tool free side adjustments +/- 1.5 mm
Optional tool free tilt adjustment +3 mm
12 mm (1/2”) to 16 mm (5/8”) drawer thickness
Compatible with Lineabox drawers
Finish: bright zinc-plated
100% Made in Italy

Versions

Components

Accessories

G7E6S350XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 350 mm

Min. depth of the cabinet: 360 mm

G7E6S400XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 400 mm

Min. depth of the cabinet: 410 mm

G7E6S450XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 450 mm

Min. depth of the cabinet: 460 mm

G7E6S500XXB

Runner length: 500 mm

Min. depth of the cabinet: 510 mm

G7E6S550XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 550 mm

Min. depth of the cabinet: 560 mm

G7E6S600XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 600 mm

Min. depth of the cabinet: 610 mm

G7E6S650XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 650 mm

Min. depth of the cabinet: 660 mm

G7E6S700XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 700 mm

Min. depth of the cabinet: 710 mm

G7E6S750XXB

Heavy-duty high-capacity full-extension runner fixed to the drawer by clip

Runner length: 750 mm

Min. depth of the cabinet: 760 mm

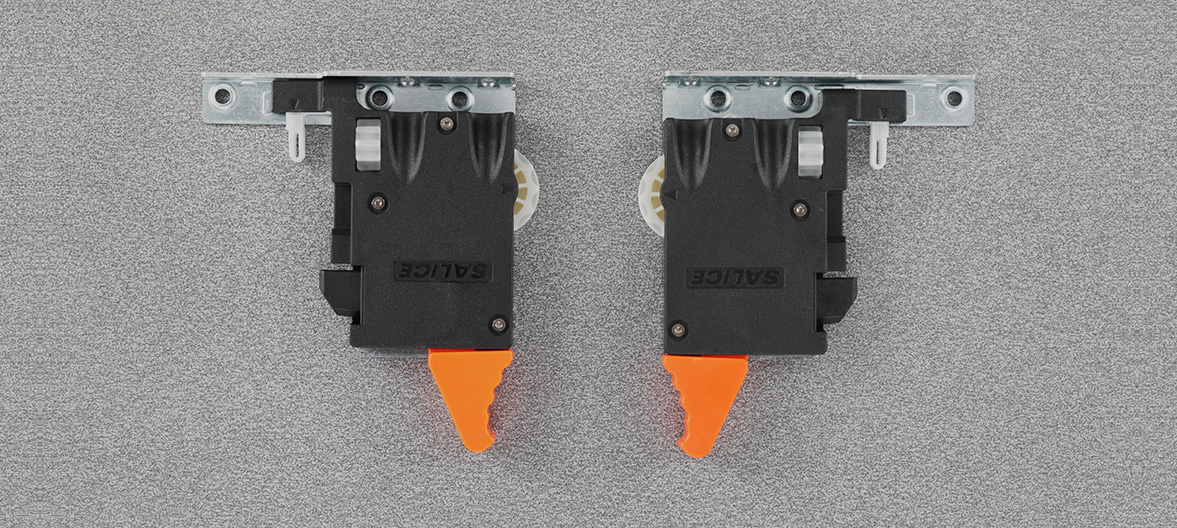

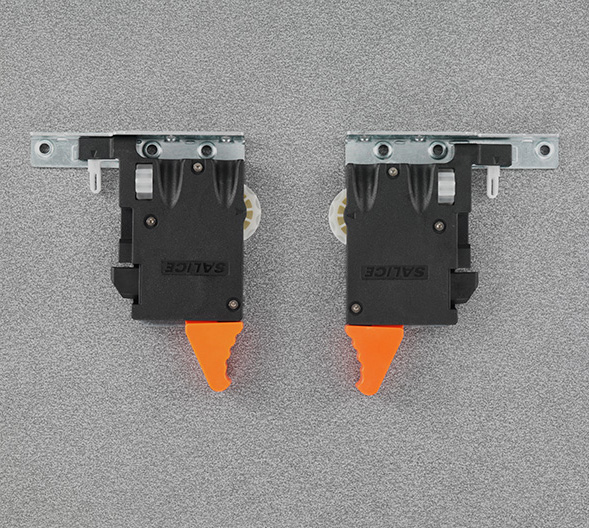

AFCGXX3B

F70 Locking devices - side and depth adjustments

- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm (3/32”)
- Mounts to the bottom or to the drawer front

SGD704UGXA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips. The correct and level mounting assures a smooth assembly and operation of the drawer slide.
