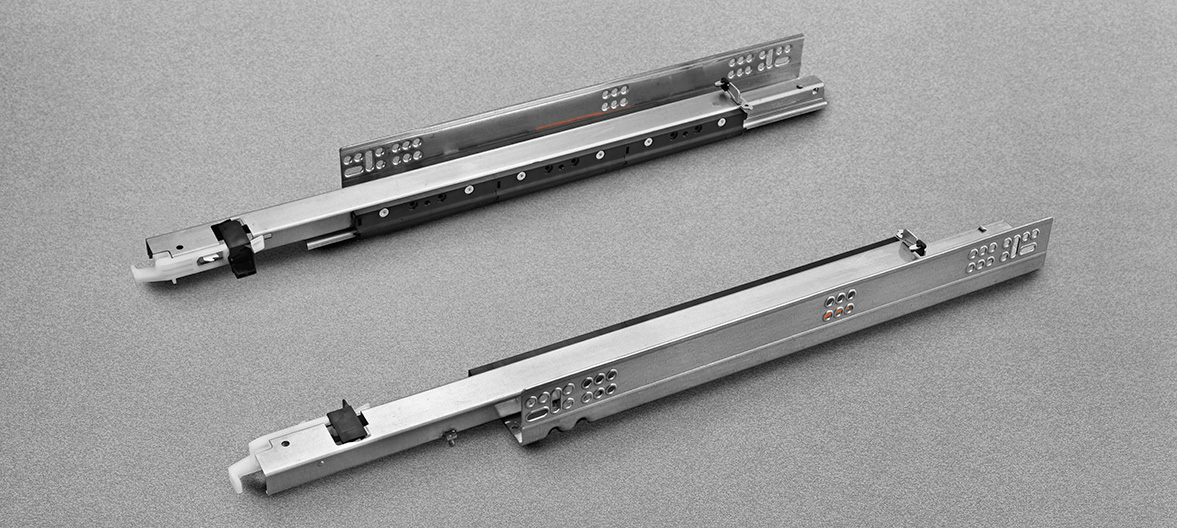

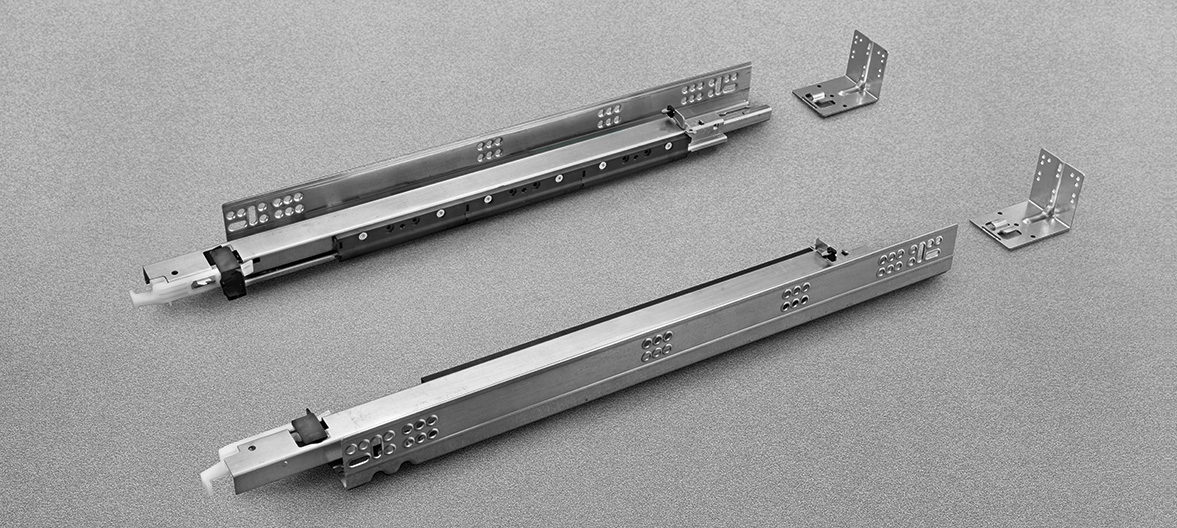

F70 PUSH - USA

Full extension

Heavy-duty fully synchronized drawer runner

170 Lbs Static load capacity
154 Lbs Dynamic load capacity
Meets and exceeds ANSI A156.9-2020 Grade 1
Available in 15” to 30” length

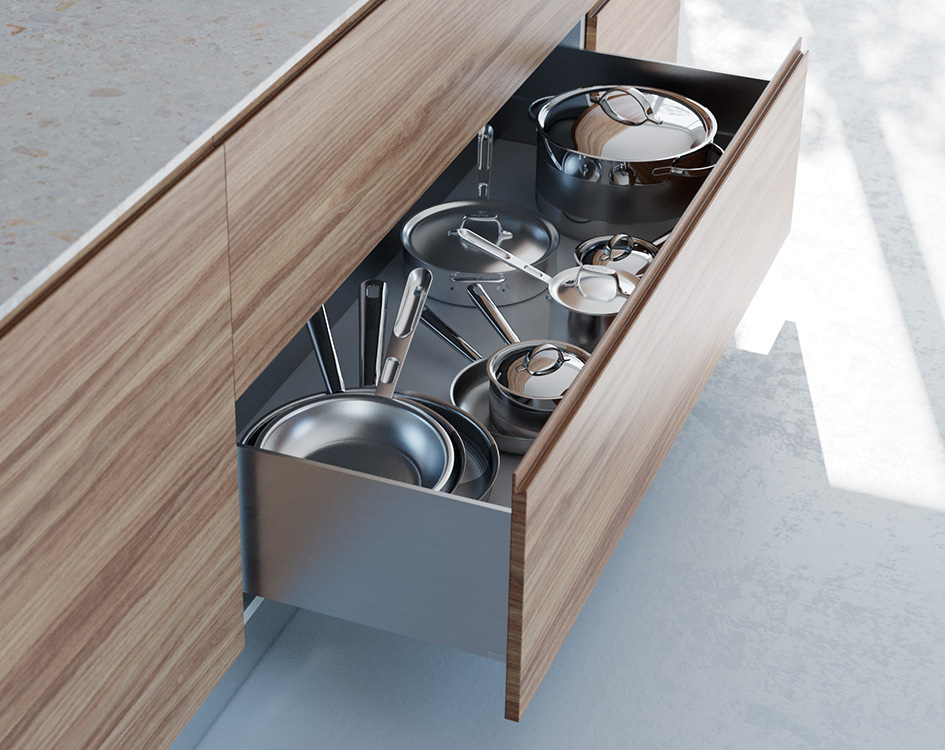

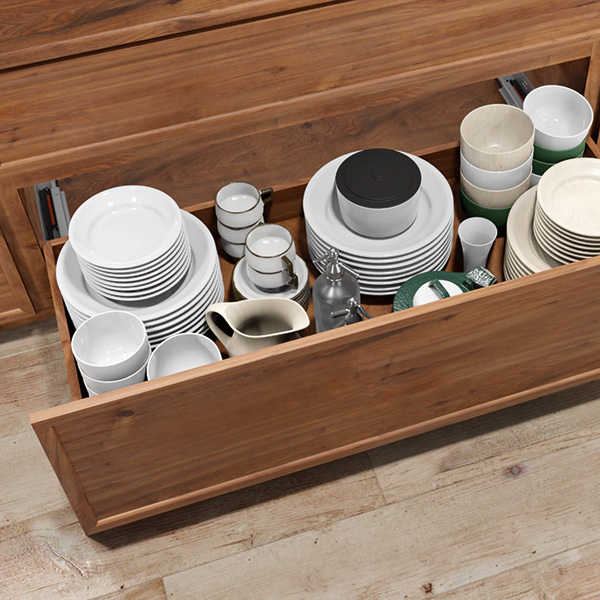

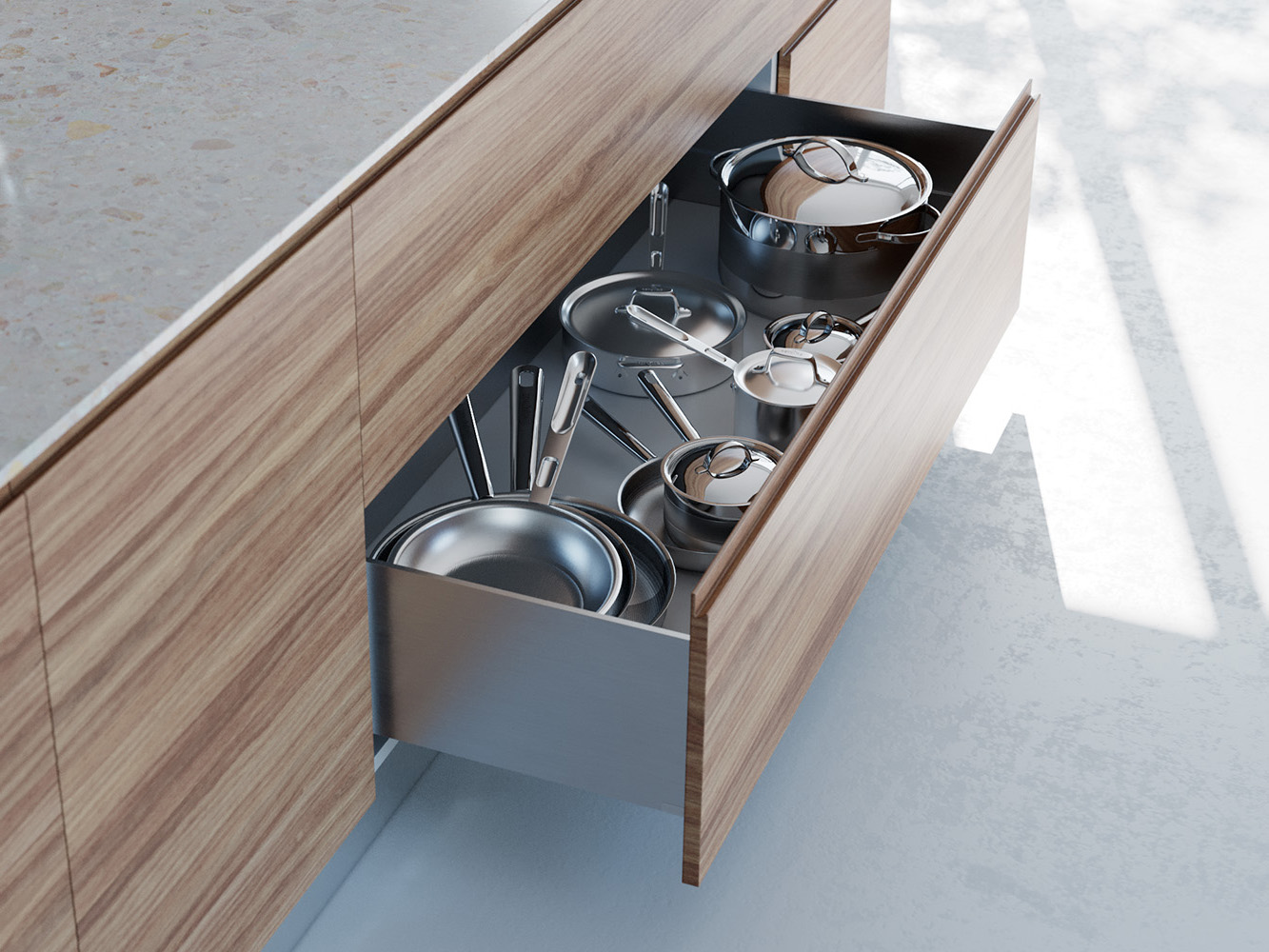

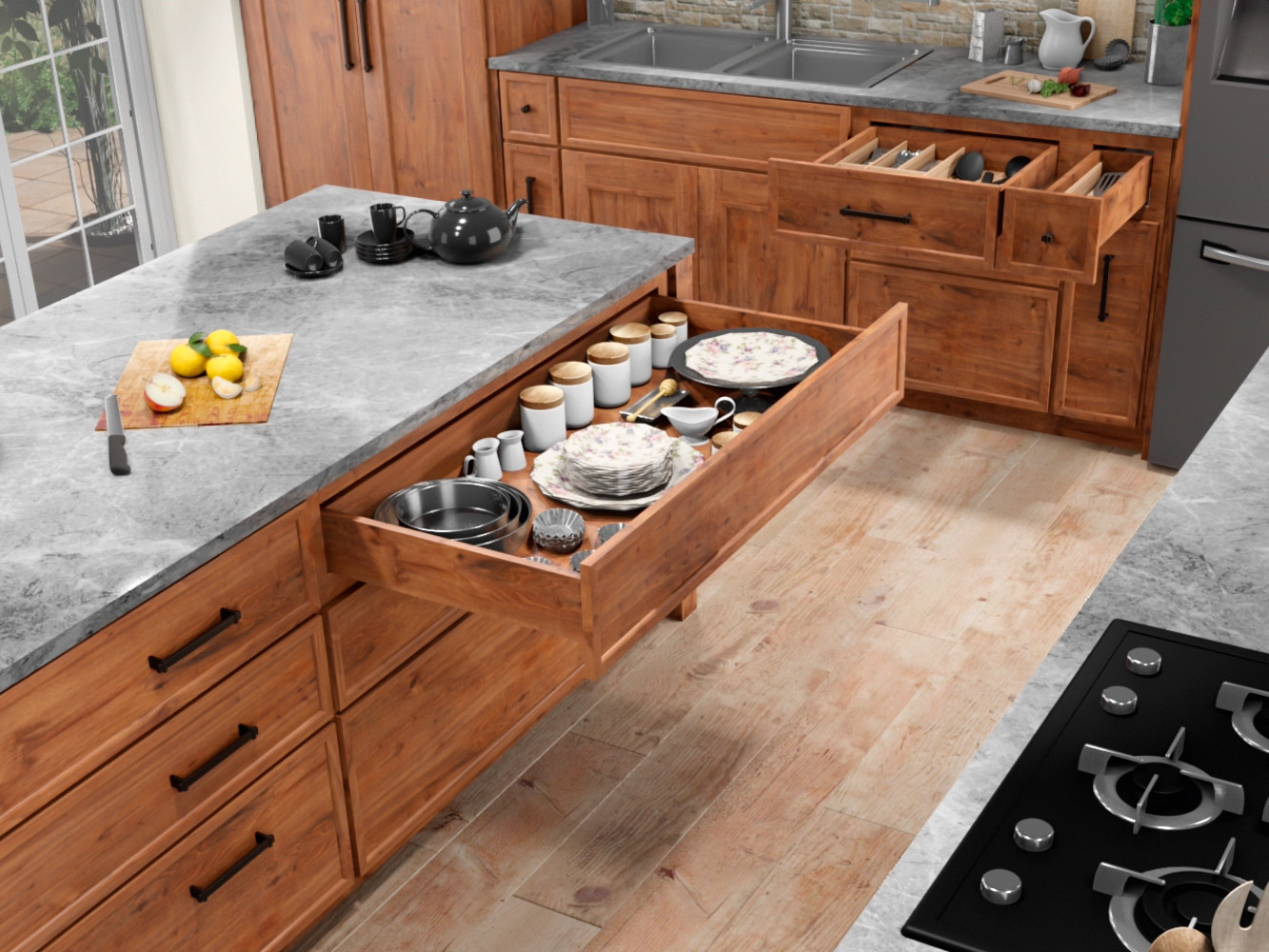

A new generation of heavy duty drawer slides

Featuring an ingenious fully integrated synchronized system by way of a rack and pinion mechanism. Suitable for every drawer in the house and any commercial application also thanks to the optional synchronizer kit (sold separately).

Push: Salice patented fully integrated Push to open system for handle-less cabinets and more. A slight pressure of the drawer front is enough to open the drawer.

Need more info about the product?

The synchronization system for Push to Open F70 runners has been developed to ensure that wider drawers can be opened with minimum effort. The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.
The synchronization can be used with any drawer width; its functionality is at its best with drawers wider than 762 mm (30”).

Find out more

170 Lbs Static load capacity
Full extension with a synchronized mechanism
Available in 15” to 30” length
Integrated Push opening system
Elongated holes for depth and height adjustment
Adjustable clips allow for easy drawer insertion and removal, special clip for narrow drawers
The drawer is latched when closed
Frameless or blocked out face frame applications
Tool free height adjustments + 2.5 mm
Tool free depth adjustments +/- 3 mm
Tool free side adjustments +/- 1.5 mm
Optional:
- tool free tilt adjustment +3 mm
- F70 Push Synchronizer
12 mm (1/2”) to 16 mm (5/8”) drawer thickness
Compatible with Lineabox drawers
Finish: bright zinc-plated
100% Made in Italy

Versions

Components

Accessories

G7U6P381XXB

FACE FRAME ASSEMBLY WITH METAL SOCKET
The socket can be used for the correct alignment of the runners before fixing to the cabinet side

Drawer length: 381 mm (15")

Runner length: 390 mm

Minimum inside cabinet depth (metal socket): 402 mm

Minimum inside cabinet depth: 399 mm

G7U6P457XXB

FACE FRAME ASSEMBLY WITH METAL SOCKET
The socket can be used for the correct alignment of the runners before fixing to the cabinet side

Drawer length: 457 mm (18")

Runner length: 466 mm

Minimum inside cabinet depth (metal socket): 478 mm

Minimum inside cabinet depth: 475 mm

G7U6P533XXB

FACE FRAME ASSEMBLY WITH METAL SOCKET
The socket can be used for the correct alignment of the runners before fixing to the cabinet side

Drawer length: 533 mm (21")

Runner length: 542 mm

Minimum inside cabinet depth (metal socket): 555 mm

Minimum inside cabinet depth: 552 mm

G7U6P457CXB

EURO SHORT VERSION

Drawer length: 457 mm (18")

Runner length: 465 mm

Minimum inside cabinet depth: 474 mm

G7U6P533CXB

EURO SHORT VERSION

Drawer length: 533 mm (21")

Runner length: 541 mm

Minimum inside cabinet depth: 551 mm

G7U6P610CXB

EURO SHORT VERSION

Drawer length: 610 mm (24")

Runner length: 618 mm

Minimum inside cabinet depth: 627 mm

G7U6P686CXB

EURO SHORT VERSION

Drawer length: 686 mm (27")

Runner length: 694 mm

Minimum inside cabinet depth: 706 mm

G7U6P762CXB

EURO SHORT VERSION

Drawer length: 762 mm (30")

Runner length: 770 mm

Minimum inside cabinet depth: 783 mm

AFCGXX3B

F70 Locking devices - Standard mount - side and depth adjustments
- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm (3/32”)

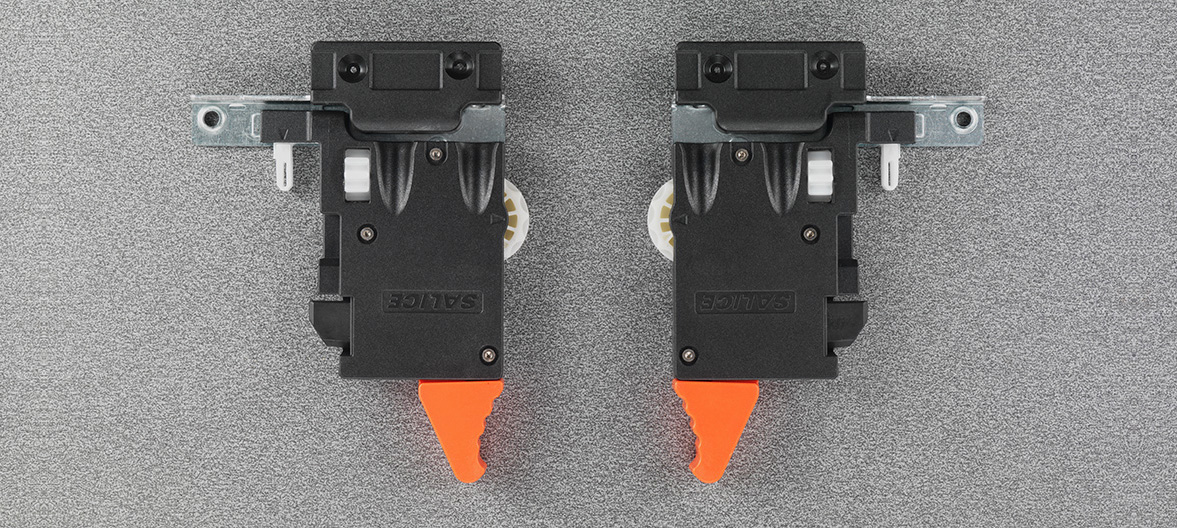

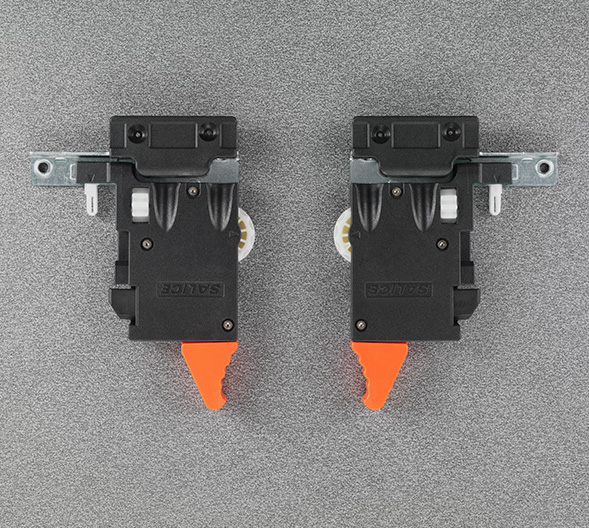

AFCGX43B

F70 Locking devices - Vertical mount - side and depth adjustments
- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Height of the sub front must be 13 mm (1/2”)
- Pre-drilling recommended ø 2.5 mm (3/32”)

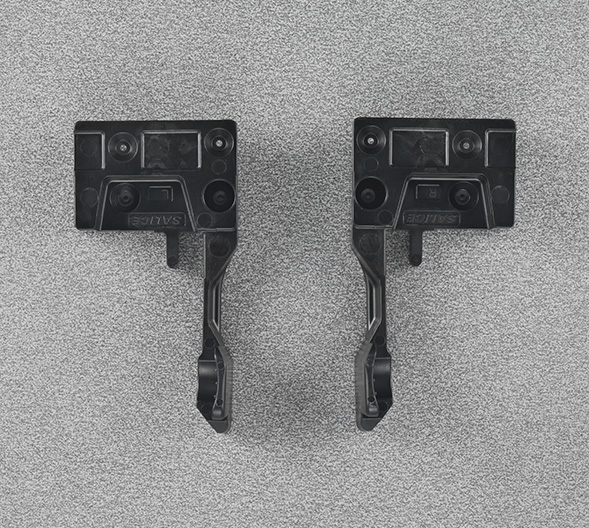

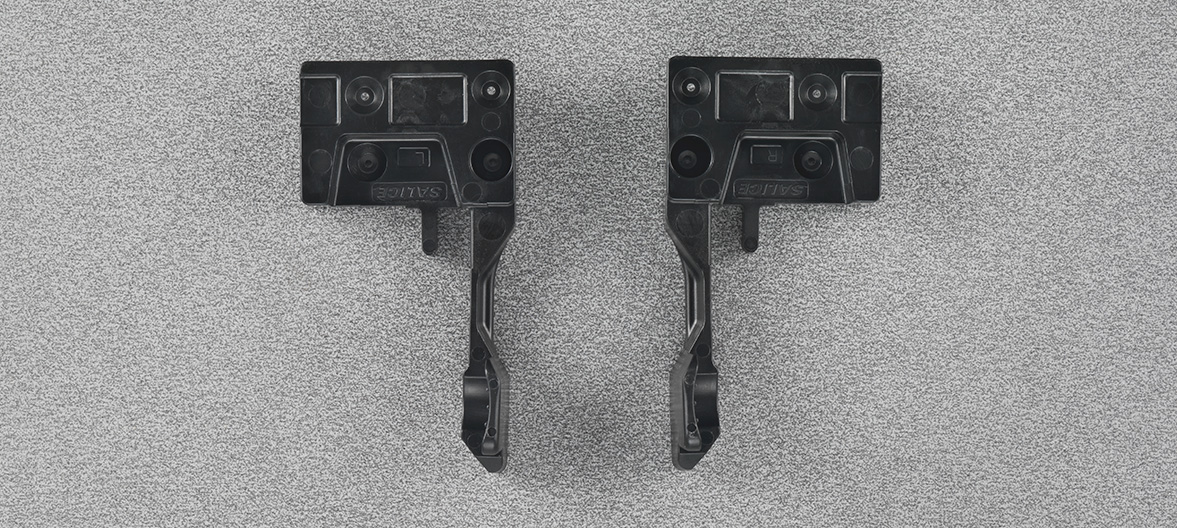

AFCEX43B

F70 Locking devices - Narrow drawer clip
- For use with narrow drawers
- For all F70 runner versions
- Height of the sub front must be 13 mm (1/2”)

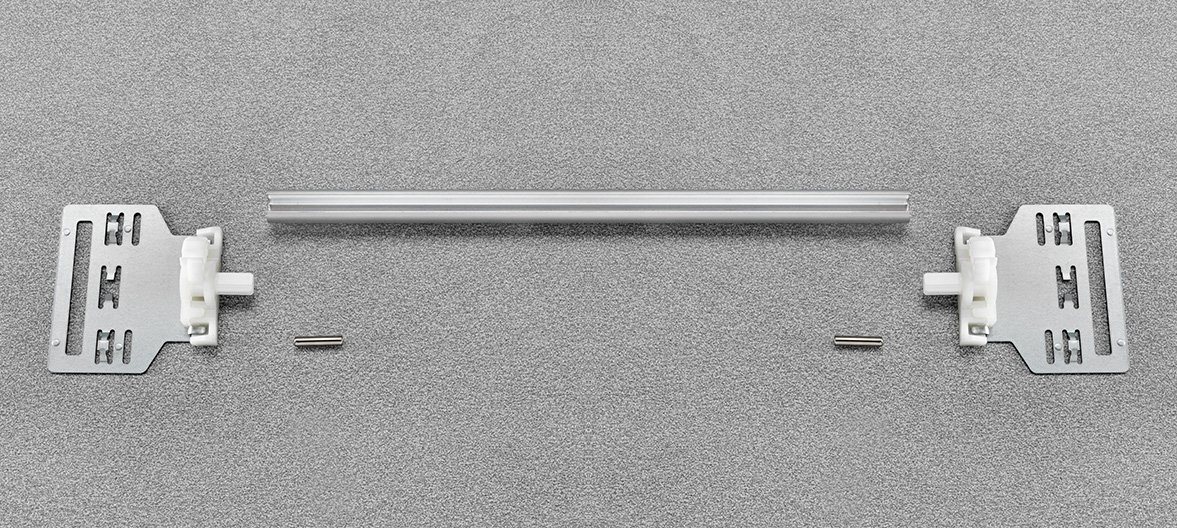

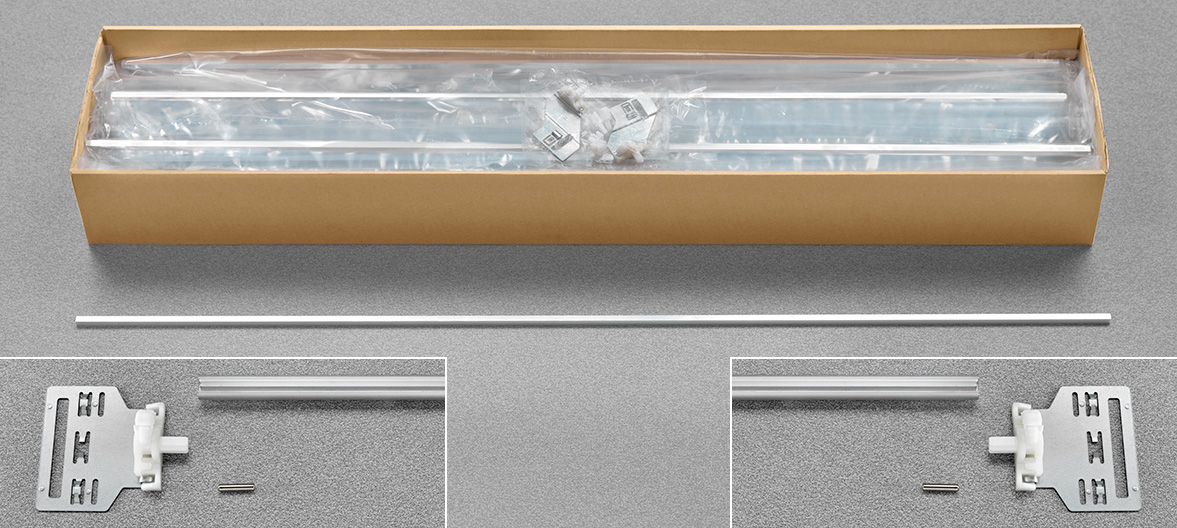

APKF7X51150

F70 Push synchronizer

The synchronisation system for Push-open F70 runners has been developed to ensure that drawers of any width can be opened with minimum effort.
The system links the two runners, which thus become a single element; a pressure at any point of the drawer frontal (even at the extremities), is sufficient for the Push mechanism to release and consequently for the drawer to self-open.

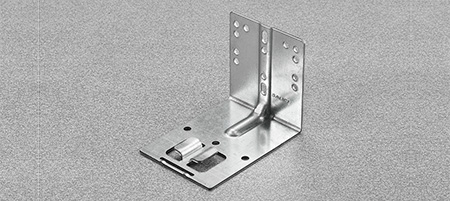

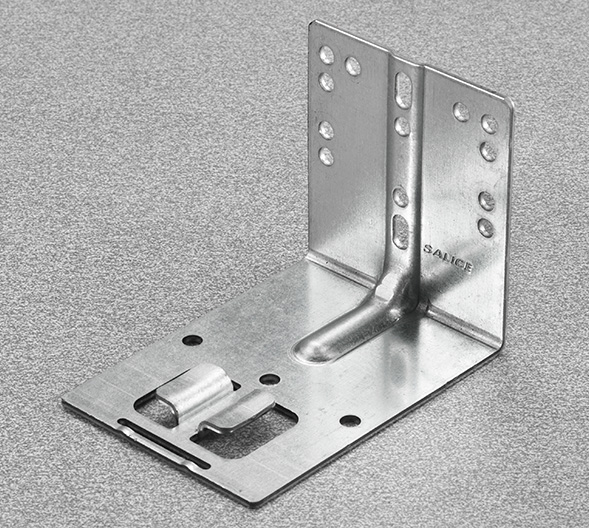

AGSK7C5B

Standard metal socket

- For F70 full extension runners
- Lateral self-alignment feature
- One piece stamped metal, zinc-coated
- Non-handed
- Use a minimum of 4 screws per socket

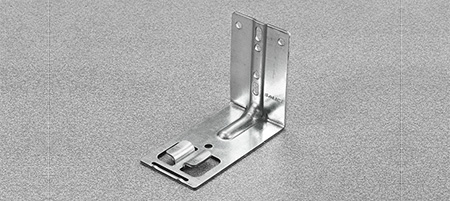

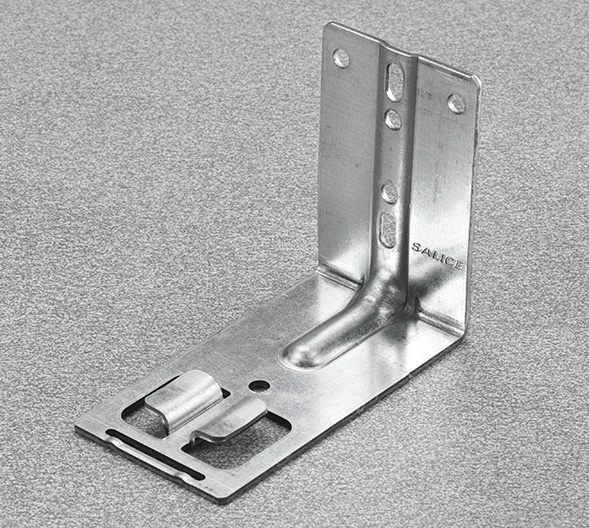

AGSK7R5B

Narrow metal socket

- For F70 full extension runners
- Lateral self-alignment feature
- One piece stamped metal, zinc-coated
- Non-handed
- Use a minimum of 4 screws per socket

SGD704UGXA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips. The correct and level mounting assures a smooth assembly and operation of the drawer slide.
