Pacta confers a decelerated opening action and the fall of the door is gradual and controlled.
In the fully-open position, the door and base panel are aligned, creating a uniform and flat surface.
Pacta comes in a variety of finishes. Its applications are numerous: in living room and kitchen cabinets, to create desks in children’s furniture or for writing surfaces and table extensions in hotel furniture.
We suggest that you use the central hinge for cabinets over 900 mm width.
Pacta is a compact hinge for fall flaps which operates without the need for additional stays or cables.
- Standard drilling of the door ø 35.
- 13 mm deep cup.
- 90° opening.
- Fixed K = 4.5 mm.
- Minimum door height of 11“; Maximum door height of 16”
- Minimum door thickness of 16 mm; Maximum door thickness of 28 mm.
- Overlay 17 mm ± adjustment.
- Attachment to the cabinet with in-line, snap-on mounting plate (BAPGR29/16).
- Side-, front and vertical door adjustment.
- Central hinge for cabinets over 900 mm width to be used.
- Covers available in numerous finishes.
FRBKFEX_SN9
Self close
SRXB78A1XXXX_
Cover
WHITE
SRXB78AQXXXX_
Cover
GLOSSY WHITE
SRXB78AIXXXX_
Cover
STAINLESS STEEL
SRXB78AMXXXX_
Cover
GRAY
SRXB78ACXXXX_
Cover
CHAMPAGNE
SRXB78A0XXXX_
Cover
SATIN METAL BLACK
SRXB78ANXXXX_
Cover
GLOSSY METAL BLACK
DRB_XXYXI
Smove
FRCK59RUXXX1
Central hinge with cover capSuggested for cabinets over 900 mm width
WHITE
FRCK59RUXXXQ
Central hinge with cover capSuggested for cabinets over 900 mm width
GLOSSY WHITE
FRCK59RUXXXI
Central hinge with cover capSuggested for cabinets over 900 mm width
STAINLESS STEEL
FRCK59RUXXXM
Central hinge with cover capSuggested for cabinets over 900 mm width
GRAY
FRCK59RUXXXC
Central hinge with cover capSuggested for cabinets over 900 mm width
CHAMPAGNE
FRCK59RUXXX0
Central hinge with cover capSuggested for cabinets over 900 mm width
SATIN METAL BLACK
FRCK59RUXXXN
Central hinge with cover capSuggested for cabinets over 900 mm width
GLOSSY METAL BLACK

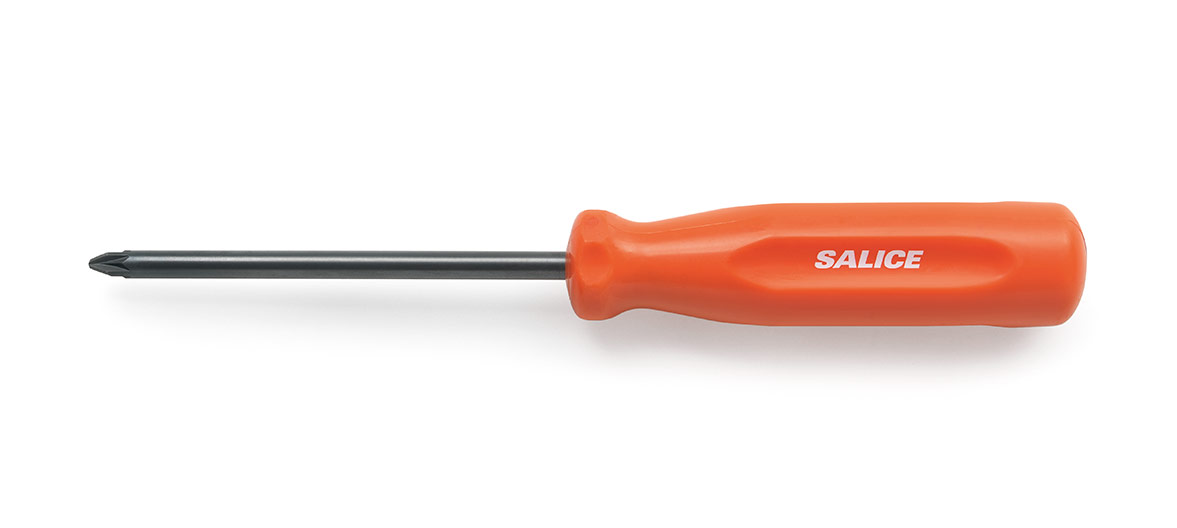

Pozi driver D2A7XCXCP
The #2 Pozi driver is for use on all adjustment screws and all Pozi drive attachment screws
Technical information
Technical pamphlet
Presentación
Check out the functionality and aesthetics of all Salice products
PACTA
With Push system for single doors
System for fall flaps
- Wooden doors
- Door height from 280 to 400 mm
- Door weight from 1,5 to 9,5 kg
- 90° opening
- Decelerated opening action
