SILENTIA+
Series 800 - 105° opening - Standard application
Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For doors of small weight and thickness (15-20 mm)
- Wooden doors
- 105° opening
- Snap-on fixing with traditional mounting plates
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
The state of the soft-close art
Silentia+ allows a perfect and constant closing of the door in any condition, use and application.
The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.
Technical features
- Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
- The decelerating effect is adjusted by using a simple switch.
- Hinges for doors of small weight and thickness.
- Dimensions of the Ø 35 mm cup.
- 12 mm deep cup.
- 105° opening.
- Possible drilling distance on the door (K): from 3 to 6 mm.
- Symmetrical Series 200 mounting plates in matt nickel-plated steel or with a titanium finish.
NOT COMPATIBLE with Series 200 mounting plates with negative height.

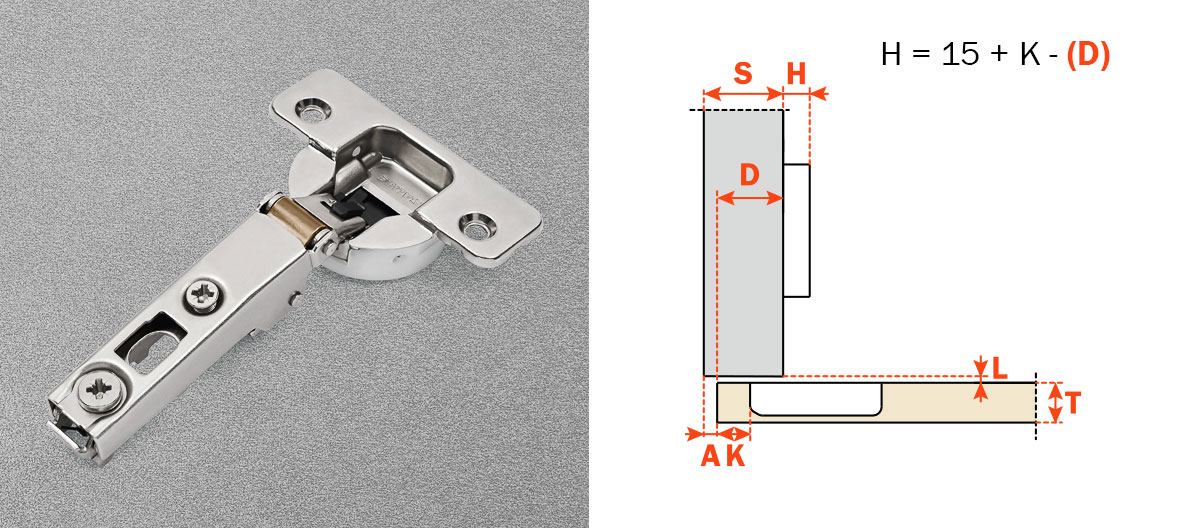

C8_6AE9
Arm 0
C8_6AE9: nickel-plated finish
C8_6AE6: titanium finish

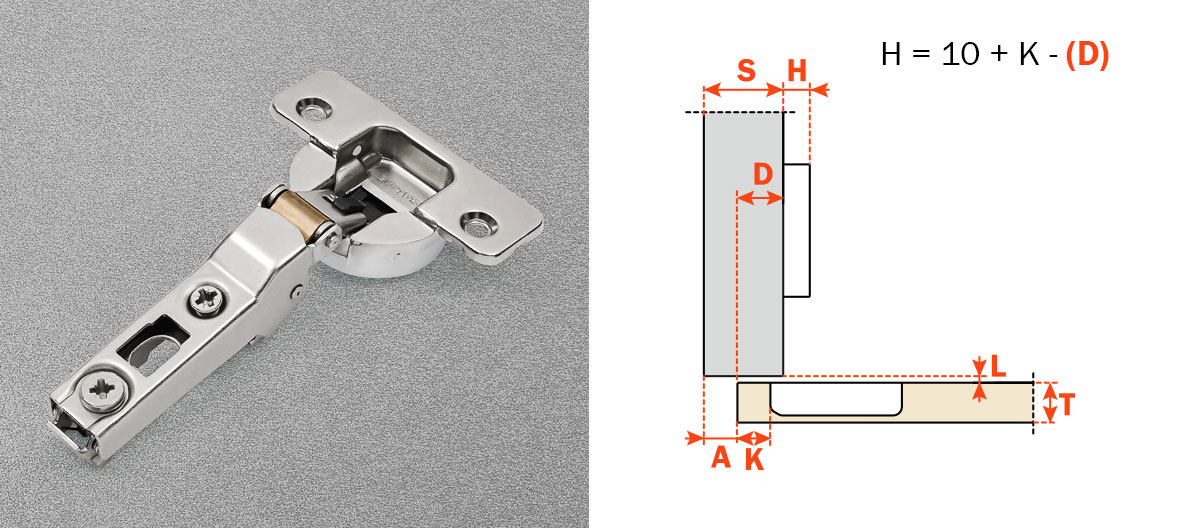

C8_6DE9
Arm 5
C8_6DE9: nickel-plated finish
C8_6DE6: titanium finish

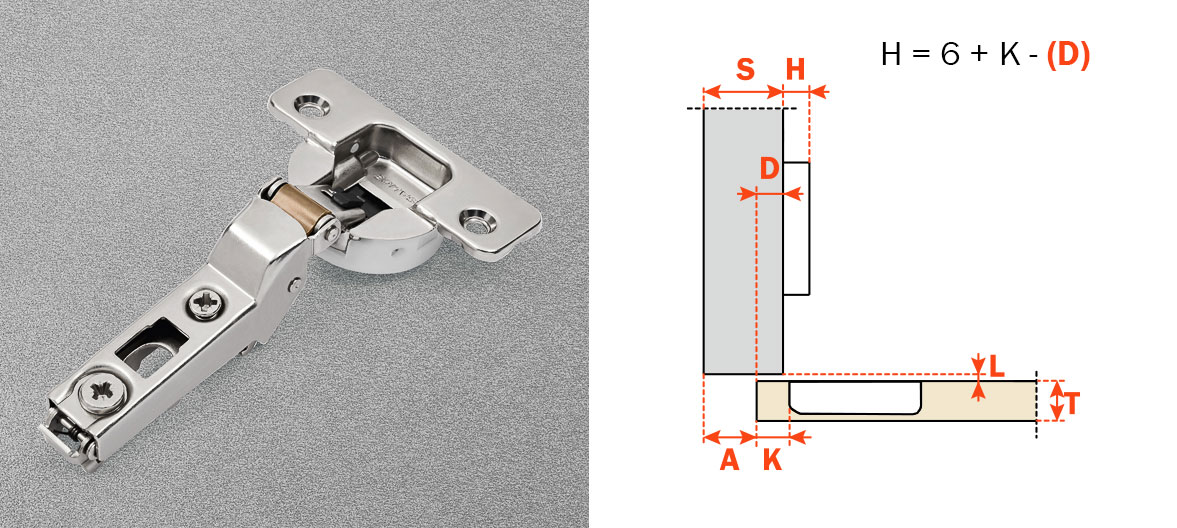

C8_6GE9
Arm 9
C8_6GE9: nickel-plated finish
C8_6GE6: titanium finish

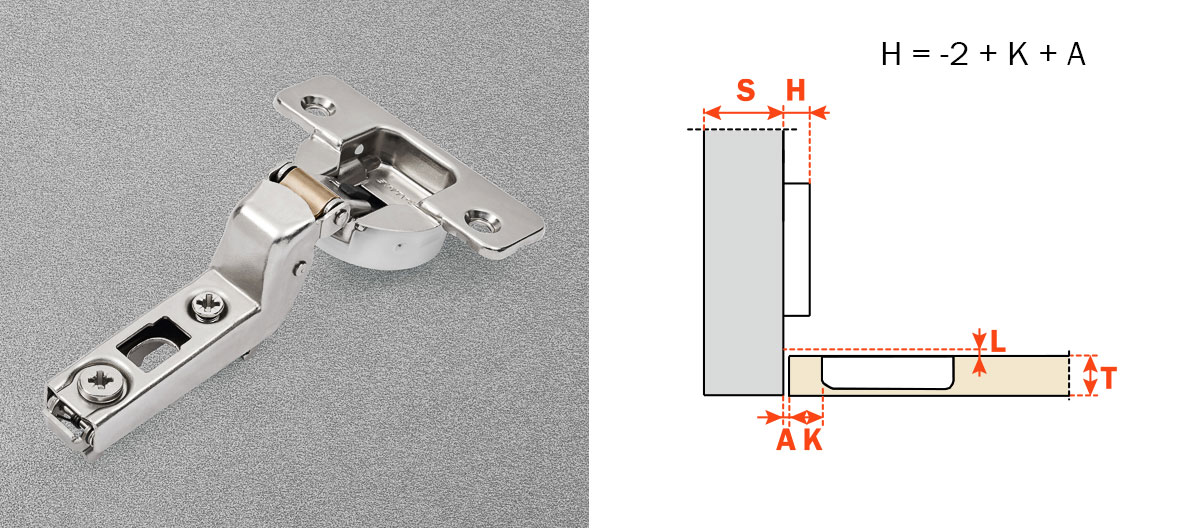

C8_6PE9
Arm 17
C8_6PE9: nickel-plated finish
C8_6PE6: titanium finish
Screw cover cap S8XX83H9
Symmetrical steel screw cover cap, it can be personalised on request.For Series 800 hinges
Screw cover cap S8CX83H9
Symmetrical steel screw cover cap with embossed logo.For Series 800 hinges
Flange cover cap S2XX85H9
Steel flange cover cap, it can be personalised on request.For all Series 100, 200, 300, 700, 800 and 900
Flange cover cap S2CX85H9
Steel flange cover cap with embossed logo.For all Series 100, 200, 300, 700, 800 and 900
Spacer S2XX86
Spacer to reduce the drilling depth for 94°, 105° and 110° hinges.S2XX86BT = 0.6 mm
S2XX86AT = 1.2 mm
S2XX86KT = 1.8 mm
Gauge D_A_AC_SN
Gauge to check the diameter and the depth of the drilling.D1A6AC3SN = 12 mm
D2ABACGSN = 15.5 mm
D7A6ACYSN = 13.5 mm
Stop device S1E637XY
It limits opening at about 86°
